Concrete Mixers Line





MODEL

CM4

CM7

CM9

CM12

Batch Capacity bags

1/3 bag

1/2  bags

1 bags

1½ - 2 bags

Mixing Capacity cu.fu (lts)

4 cu. ft. (115)

7 cu.fu  (220)

9 cu.fu  (260)

12 cu.fu (340)

Total Capacity cu.fu (lts)

5.13 cu.ft.
(145)

8.98 cu.fu (254)

12.6 cu.fu (356)

15.39 cu.fu (435)

Engine Power

Honda 5 HP or 1.5 HP Electric

Honda 5 to 8 HP or 2HP Electric

5 to 8 HP Honda,
3 HP Electric, 6.4 HP Diesel

13 HP Honda,
3 HP Electric,
6.4 HP Diesel

Drive System

V-Belt to Gears

V-Belt to Gears

V-Belt to Gears

V-Belt to Gears

Wheels Size

12 x 4.8
High - Speed

12 x 4.8
High - Speed

13 x 6.5
High - Speed

13 x 6.5
High - Speed

Overall Width in (cm)

51” (129)

51” (129)

51” (129)

51” (129)

Tow Pole in Length in (cm)

76” (192)

79” (200)

81” (205)

83” (210)

Overall Height in (cm)

58” (147)

58” (147)

63” (160)

69” (175)

Operating Weight lbs. (Kg)

500 lbs. (226)

790 lbs. (359)

868 lbs. (394)

895 lbs. (406)

Drum Thickness

10 Gauge Bottom
14 Gauge Body

10 Gauge Bottom
14 Gauge Body

10 Gauge Bottom
14 Gauge Body

10 Gauge Bottom
14 Gauge Body




    Watch our Concrete Mixer Video: www.youtube.com/watch?v=M5uIufoSpLU







MODEL

CM6P

CM9P

Batch Capacity bags

1/2 bag

1 bags

Capacity cu.fu (lts)

9 cu.fu  (260)

6 cu.fu  (180)

Engine Power

5 to 8 HP Honda or 2HP Electric

5 to 8 HP Honda, 3HP Electric,
6.4 HP Diesel

Drive System

V-Belt to Gears

V-Belt to Gears

Wheels Size

12 x 4.8
High - Speed

13 x 6.5
High - Speed

Overall Width in (cm)

51” (129)

51” (129)

Tow Pole in Length in (cm)

76” (193)

78” (198)

Overall Height in (cm)

58” (147)

63” (160)

Operating Weight lbs. (Kg)

500 lbs. (226)

580 lbs. (263)






    Watch our Max Mix Video: www.youtube.com/watch?v=A6nOfroOOZw

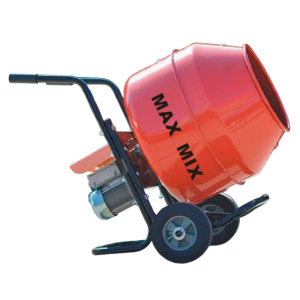

PEDESTAL CONCRETE MIXERS MAX MIX

  • Ideal for home owners and small contractors.
  • Steel Drum and Replaceable bolted in blades.
  • Powder coat finish design for heavy duty use.
  • With versatile design, the Max Mix can be used as a wheel barrow to transport concrete or as a pedestal style mixer.
  • Built in enclosed cast iron gear reducer drive system for life extension.
  • 3 cu.fu capacity (80 lts).
  • Easy Packed in a 26”x 36” x 26” Box.
  • Operating Weight lbs. (kg): 128 lbs. (58).
  • Power: 1/3 HP Electric Motor.
  • Voltage: 110V/60Hz
  • Drum Speed: 23 RPM
  • Wheels size 10” (25 cm) Diameter 2 ½” (6.3 cm) Width
